delphi TouchKeyboard1 基本用法

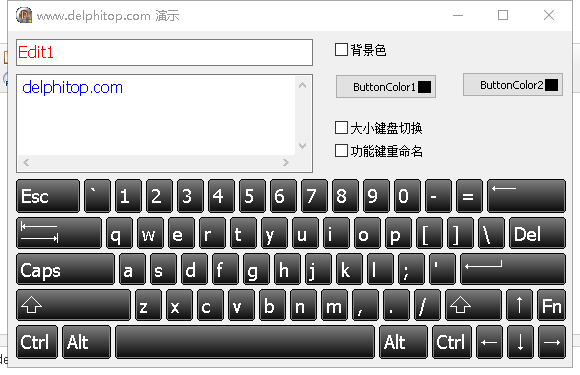

演示：

unit Unit1;

interface

uses

Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,

Dialogs, Keyboard, StdCtrls, TeCanvas;

type

TForm1 = class(TForm)

TouchKeyboard1: TTouchKeyboard;

Edit1: TEdit;

Memo1: TMemo;

CheckBox1: TCheckBox;

CheckBox2: TCheckBox;

CheckBox3: TCheckBox;

ButtonColor1: TButtonColor;

ButtonColor2: TButtonColor;

procedure CheckBox1Click(Sender: TObject);

procedure FormCreate(Sender: TObject);

procedure ButtonColor1Click(Sender: TObject);

procedure ButtonColor2Click(Sender: TObject);

procedure CheckBox2Click(Sender: TObject);

procedure CheckBox3Click(Sender: TObject);

private

{ Private declarations }

public

{ Public declarations }

end;

var

Form1: TForm1;

implementation

{$R *.dfm}

procedure TForm1.ButtonColor1Click(Sender: TObject);

begin

TouchKeyboard1.GradientStart := TButtonColor(Sender).SymbolColor;

end;

procedure TForm1.ButtonColor2Click(Sender: TObject);

begin

TouchKeyboard1.GradientEnd := TButtonColor(Sender).SymbolColor;

end;

procedure TForm1.CheckBox1Click(Sender: TObject);

begin

case CheckBox1.Checked of

True: TouchKeyboard1.DrawingStyle := TCustomTouchKeyboard.TDrawingStyle.dsGradient;

False: TouchKeyboard1.DrawingStyle := TCustomTouchKeyboard.TDrawingStyle.dsNormal;

end; {注意 TDrawingStyle 类型是定义在 TCustomTouchKeyboard 内部的}

case CheckBox1.Checked of

True: CheckBox1.Caption := 'DrawingStyle := dsGradient';

False: CheckBox1.Caption := 'DrawingStyle := dsNormal';

end;

procedure TForm1.CheckBox2Click(Sender: TObject);

begin

case CheckBox2.Checked of

True: begin

TouchKeyboard1.Layout := 'NumPad';

TouchKeyboard1.Width := 180;

TouchKeyboard1.Height := 150;

CheckBox2.Caption := 'Layout := NumPad';

end;

False: begin

TouchKeyboard1.Layout := 'Standard';

TouchKeyboard1.Width := 550;

TouchKeyboard1.Height := 180;

CheckBox2.Caption := 'Layout := Standard';

end; {注意: 这里的 Layout 属性是个字符串}

end;

procedure TForm1.CheckBox3Click(Sender: TObject);

begin

case CheckBox3.Checked of

True: begin

TouchKeyboard1.CaptionOverrides.SetCaption('Esc', '退出');

TouchKeyboard1.CaptionOverrides.SetCaption('Backspace', '退格');

TouchKeyboard1.CaptionOverrides.SetCaption('Del', '删除');

TouchKeyboard1.CaptionOverrides.SetCaption('Enter', '回车');

{Esc Backspace Tab Del Caps Enter LeftShift RightShift LeftCtrl LeftAlt RightAlt RightCtrl}

end;

False: TouchKeyboard1.CaptionOverrides.Clear;

end;

TouchKeyboard1.Redraw; {重绘}

end;

procedure TForm1.FormCreate(Sender: TObject);

begin

Memo1.Font.Color := clBlue;

Memo1.Font.Size := 12;

Memo1.ScrollBars := ssBoth;

Edit1.Font.Color := clRed;

Edit1.Font.Size := 12;

CheckBox1.Caption := '背景色';

CheckBox2.Caption := '大小键盘切换';

CheckBox3.Caption := '功能键重命名';

end;

end.
